XD Static Bonding Spool - 6"
XD Static Bonding Spool - 6"
$367.00 – $626.00

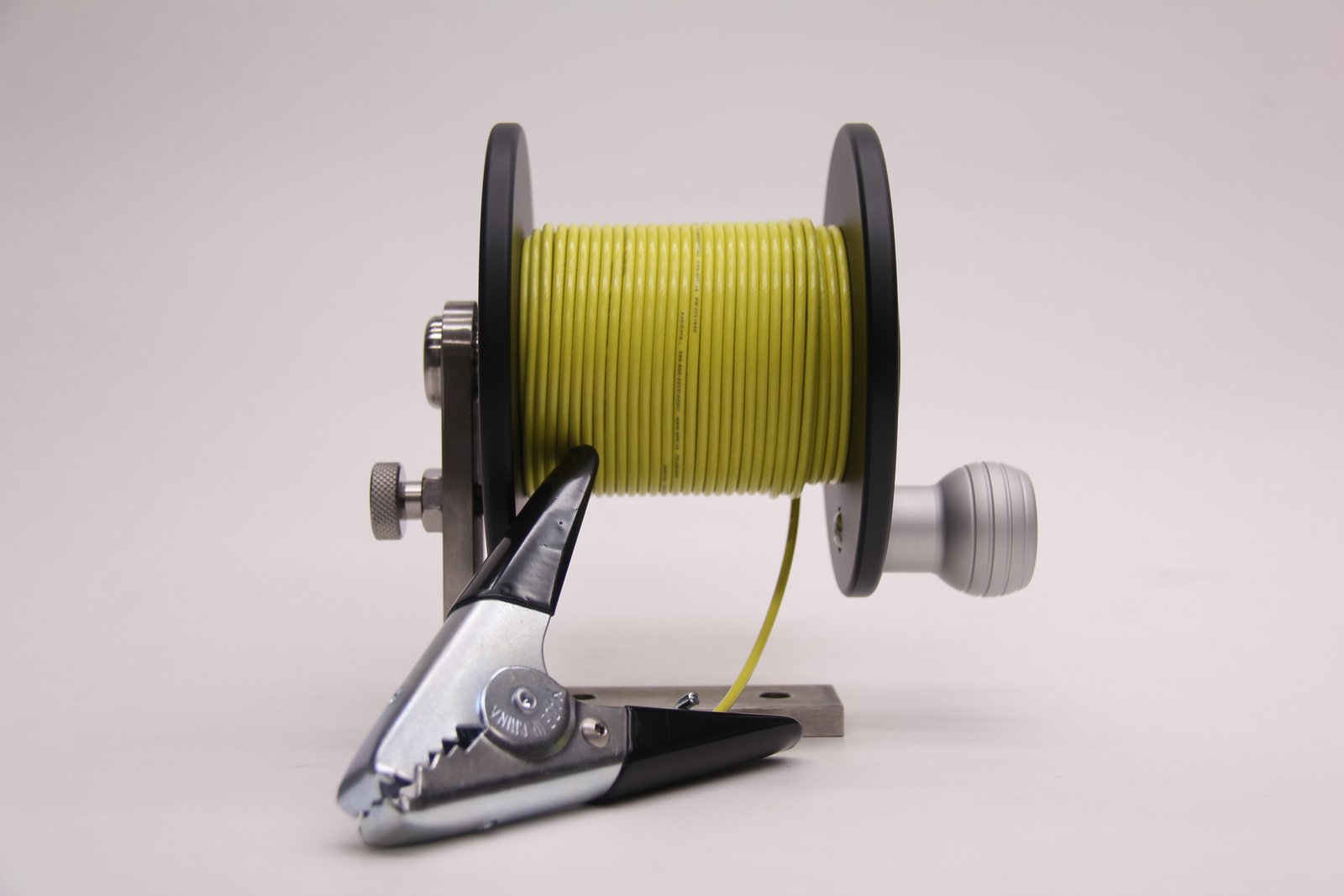

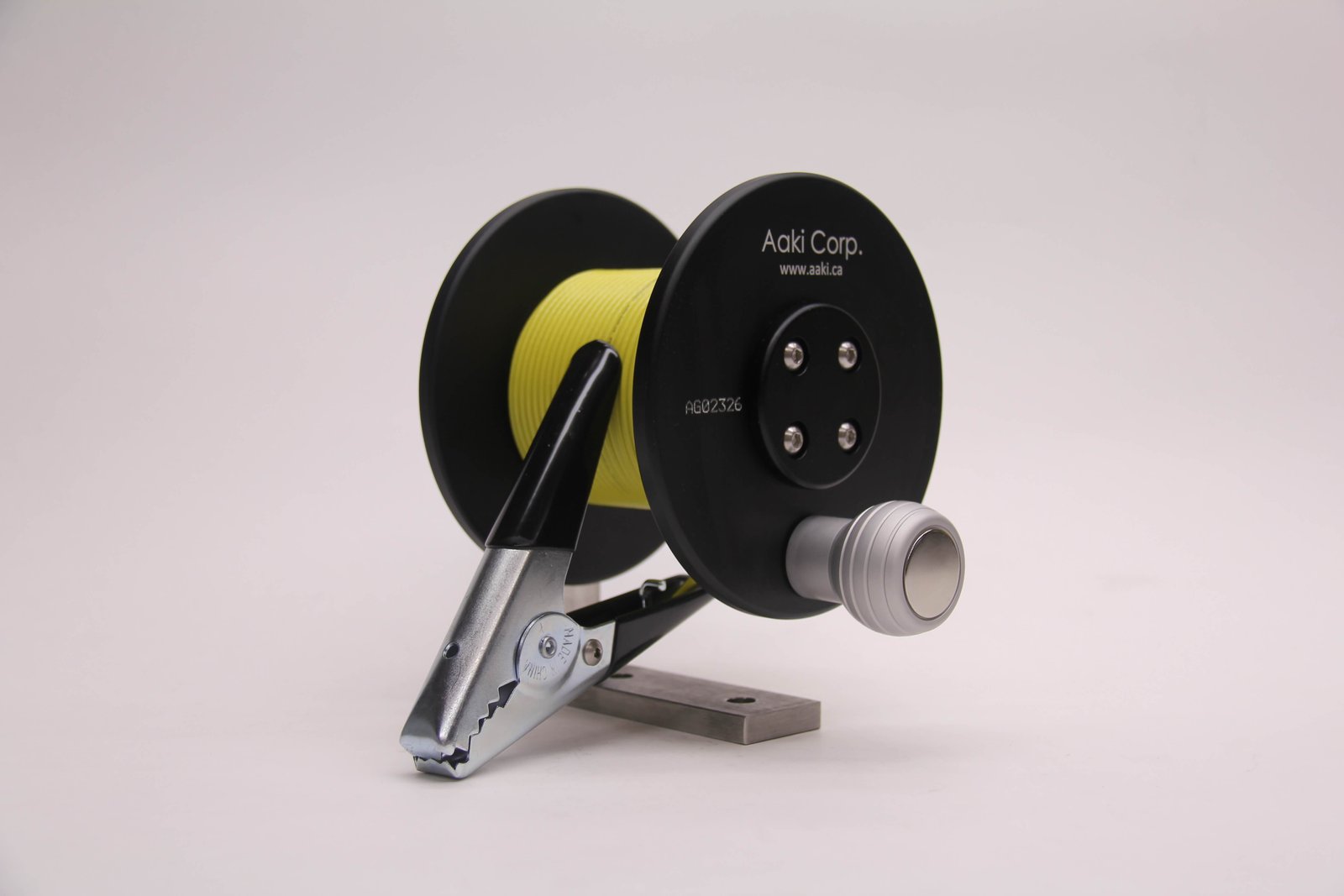

Looking for extra durability? Aaki’s Anti-Static 6” EXTREME DUTY Bonding Spool provides that little extra bit of toughness for the most extreme conditions. When properly maintained and operated, the 6” spool provides a convenient system to help dissipate potentially dangerous static voltage, reducing the chance of a dangerous explosion.
Receive a quantity discount on orders of 10 or more!
Click the link below to read our blog post on Bonding Systems.
Description
Key Features:
- Tough, durable construction that is built to last.
- Small compact footprint takes up minimal real estate
- Machined aluminum spool construction will not rust, crack or break
- Oilite bushing for years of trouble free service
- Easy grab stainless steel locking pin able to stay in a retractable position allows freewheeling to quickly spool out cable; locks during transport
- Steel heavy duty powder painted mounting bracket can be bolted or welded to the truck frame
- Available in 4” and 2” drum width versions
- Heavy duty bonding clamp helps to ensure a solid electrical connection
- Large round rotating easy grip spool handle can be used with gloves
- Specifications: 10.25” H x 9” W (7” W on slim version) x 6.5” D.
- End to end resistance less than 10 ohms (4 ohms typical)
- Holds up to 50’ of Aaki 4 AWG or 150’ of Aaki 12 AWG anti-static bonding cable
Applications:
- Vacuum trucks
- Tank trucks
- Pumper trucks
- Snubbing units
- Coil tubing units
- Service vehicles
- Tank farms
- Fuel filling stations
- Well heads
- Coal hoppers
- Grain elevators
- Industrial fuel depots
- Portable and fixed installations
